Slide Rule Bezel – The Multi-Function Rotating Bezel on Watches

The Slide Rule Bezel supports calculations ranging from basic arithmetic to professional-level computations, making it useful for everyday tasks and specialized professions, such as aviation. Let’s explore this unique feature with https://donghochetac.vn/!

What Is a Slide Rule Bezel?

A Slide Rule Bezel is a rotating bezel with a logarithmic scale, allowing users to perform mathematical calculations from basic to advanced levels. This feature is primarily found in professional watches, particularly pilot and military timepieces.

📌 Structure of the Slide Rule Bezel:

✔ Fixed Inner Scale: Printed directly on the watch dial, non-rotatable.
✔ Rotating Outer Bezel: Can rotate in both directions for calculations.

Both scales contain logarithmic markings, functioning like a traditional slide rule.

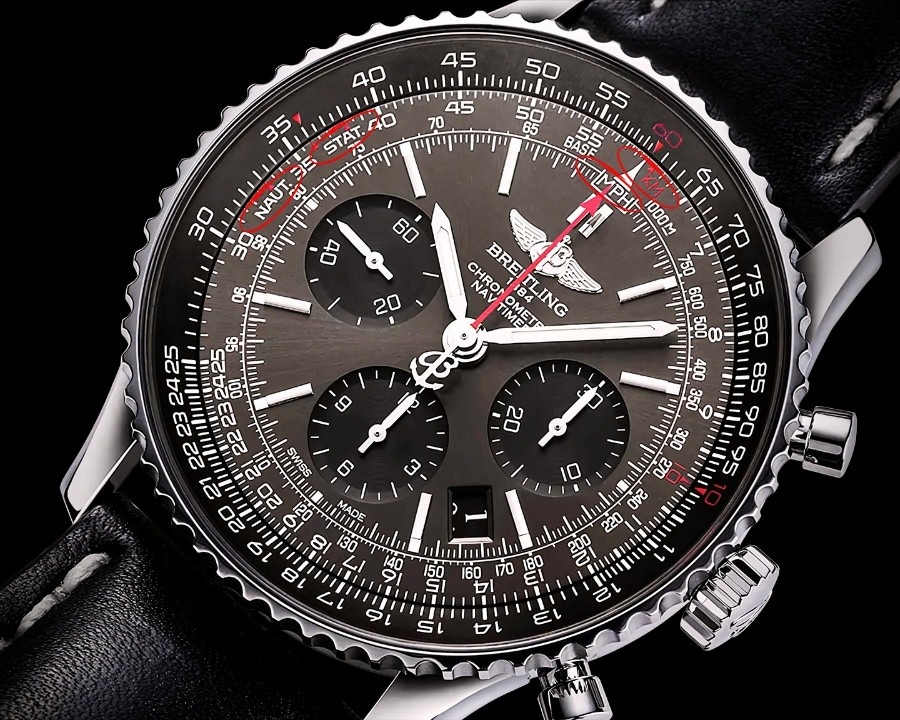

Key Markings on a Slide Rule Bezel

📌 Important indicators on the Slide Rule Bezel:

✔ The red “10” mark (at 2:30 position) → Unit Index, used for multiplication and division.

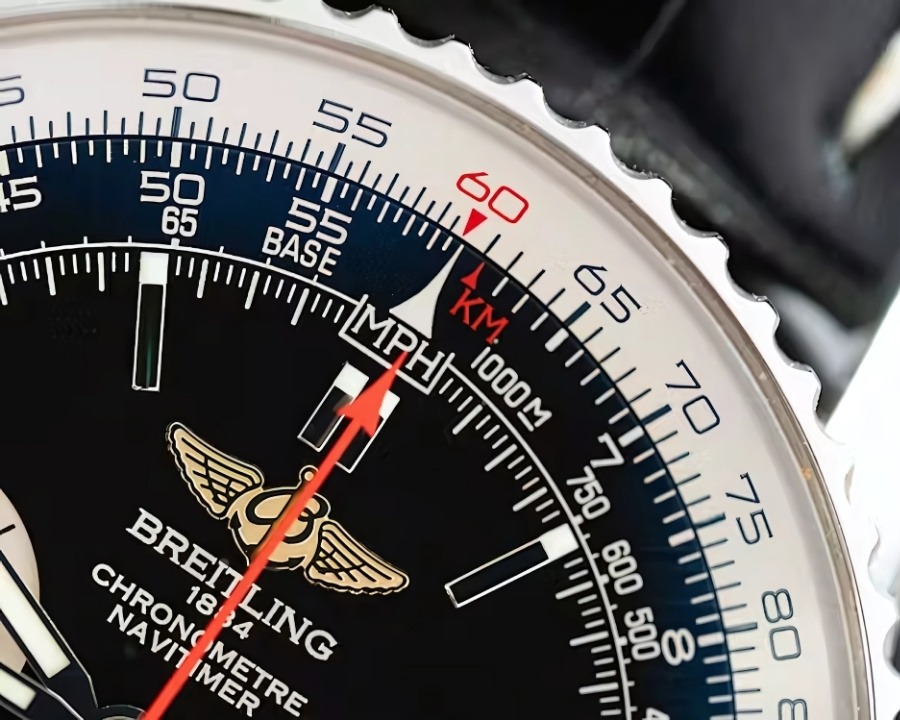

✔ MPH (at 12:00 position) → Calculates speed-related equations.
✔ STAT & NAUT → Converts between statute miles and nautical miles.

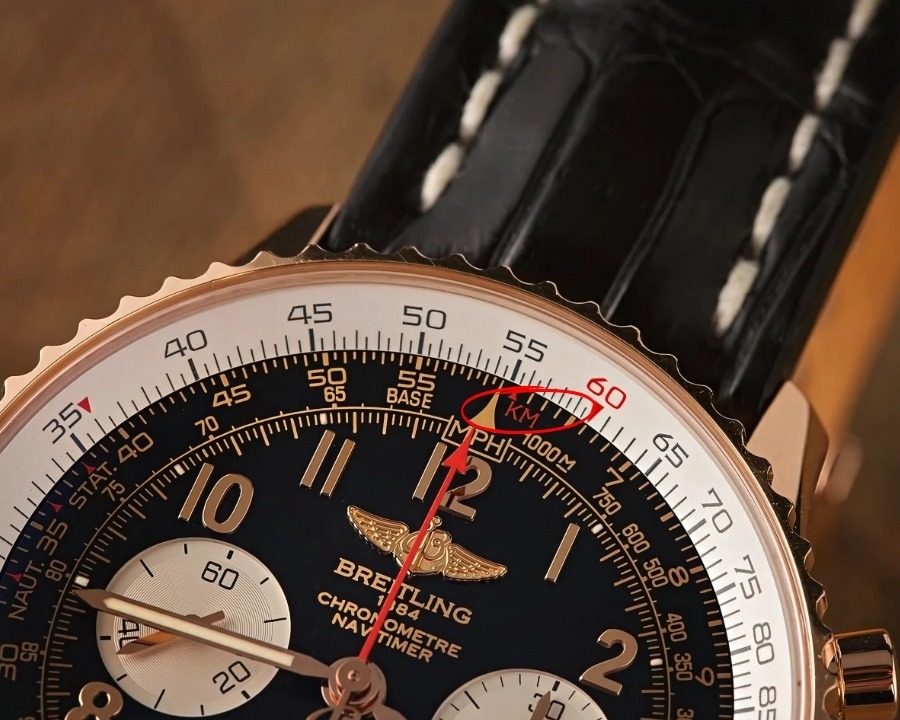

✔ KM (Kilometer) in red on the inner bezel → Converts between kilometers and miles.

Functions & Working Principles of the Slide Rule Bezel

1. Calculating Speed, Distance, and Time

The Slide Rule Bezel functions similarly to a Tachymeter, helping determine average speed.

📌 Example: If you travel 75 miles in 30 minutes, align 75 on the rotating bezel with 30 on the fixed scale to find the average speed.

2. Estimating Fuel Consumption

This feature is particularly useful for pilots, allowing them to estimate fuel usage during a flight.

📌 Requires 2 out of 3 parameters:
✔ Fuel consumption rate
✔ Flight duration
✔ Total fuel used

📌 Example: If you know the fuel consumption rate and flight time, you can easily determine the total fuel used.

3. Unit Conversion

The Slide Rule Bezel facilitates unit conversions, such as miles to kilometers, gallons to liters, etc.

📌 How to use it:
✔ Identify the conversion factor (e.g., 1 mile = 1.609 km).
✔ Rotate the bezel so that the starting unit aligns with the conversion factor.
✔ Read the converted value on the inner bezel.

4. Performing Multiplication & Division

📌 Multiplication Example:
✔ To calculate 18 × 20, align 18 on the rotating bezel with 20 on the fixed scale.
✔ The result (360) appears on the bezel.

📌 Division Example:
✔ To calculate 360 ÷ 20, align 360 on the outer scale with 20 on the inner scale.
✔ Read the result at the Unit Index → 18.

5. Currency Conversion

The Slide Rule Bezel can also be used for currency conversion, provided you know the exchange rate.

📌 Example: If 1 USD = 0.8 GBP, align 8 on the bezel with 10 on the inner scale to convert accurately.

Conclusion

📌 The Slide Rule Bezel is one of the most versatile and professional features found in watches. It supports calculations related to speed, fuel consumption, unit conversion, and arithmetic functions with precision.

While it is less common today, the Slide Rule Bezel remains an icon of technical sophistication, featured in high-end aviation watches such as:

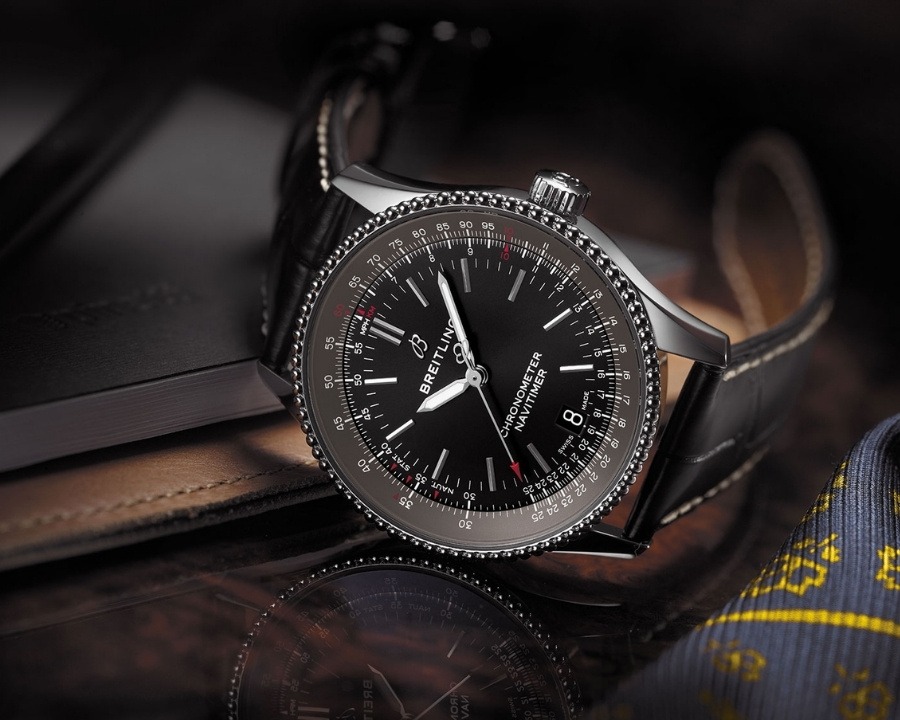

✔ Breitling Navitimer
✔ Citizen Nighthawk
✔ Seiko Flightmaster

If you are an enthusiast of professional-grade watches, a timepiece equipped with a Slide Rule Bezel will provide a unique and functional experience!
